Description

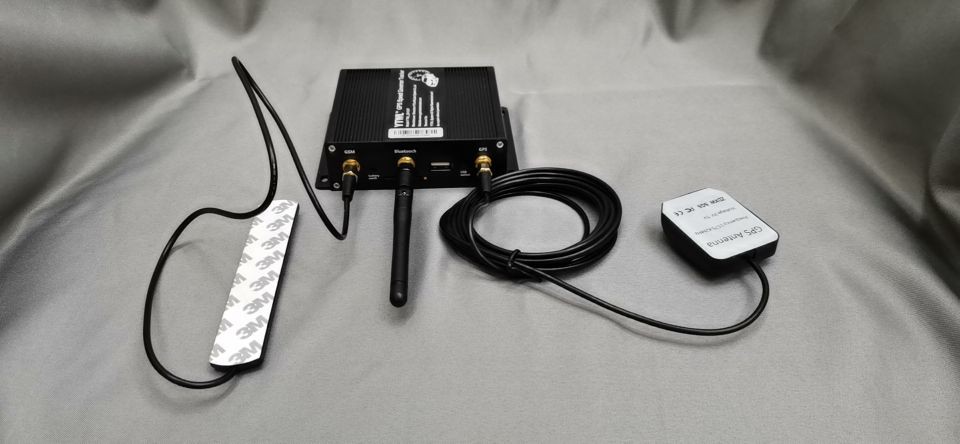

YTWL brand GPS speed limiter YTWL_CA100F is one of the hottest product in Ethiopia, it have passed the Ethiopia transport ministry standard, quality are realiable.
Main Features:
1, Speed limit with GPS integrated.
2, Support bluetooth printer, the real time speed value lists can be printed onto papers.
3, Equiped with buzzer, when the speed value is near the limit value, the buzzer will alarm in different frequency.
4, Support Fuel sensor, monitoring car's fuel level.
5, Support temperature sensor.
6, Support both mechanical throttle and electronic throttle cars.
7, Tracking car by computer/ mobile phone APP, real time tracking.
8, Knowing car's status, running/Stop, and history route trace.
9, GEO-FENCE, our platform support different speed limit value, users setup different value in different area.
10, Cut Engine / Resume engine by APP/Computer/Mobile phone SMS.
SMS Command list:
|
1 |
FACTORY*123456 |
Setting back to factory default |
|
2 |
CHANGEPW*123456*138138 |
New Password:138138 |
|
3 |
SPEED*123456*080 |
Set Speed OK: 80 |
|
4 |
RESET*123456 |
Cancel all alarm setting and re-power on |
|
5 |
INTERVAL*123456*030 |
Set Interval 30 s OK |
|
6 |
IP*123456*S121.201.110.106,5300 |
IP SET OK |
|
7 |
NUMBER*123456*13612345678 |
NEW ID: 13612345678 |
|
8 |
APN*123456*CMNET |
APN: CMNET |
|
9 |
USERNAME*123456*username*password |
USERNAME:username, PASSWORD: userpass |
|
10 |
TIMEZONE*123456*+08 |
TIMEZONE: +08 |
|
11 |
UPGRADE*123456*39.108.130.237,2332 |
Upgrade Main Starting!!! |
|
12 |
ACCON*123456*30 |
Set Acc On Interval 30s OK |
|
13 |
ACCOFF*123456*60 |
Set Acc Off Interval 60s OK |
|
14 |
AT30SUM0 |
Set Auto track 30s OK |
|
15 |
ANGLE*123456*60 |
Set Angle 60 OK |
|
16 |
TCP |
Device Info |
|
17 |
PULSE*123456*450 |
Set PULSE parameter 450 OK |
|
18 |
STARTIDLE*123456 |
Start Idle Voltage OK: 0.360, 0.720 |
|
19 |
print*123456*010 |
change the Bluetooth print time is 10 minutes |
|
20 |
BTprint*123456 |
Bluetooth printer start to print |
|
21 |
oiltime*123456*5 |
change the cut off fuel time to 5 seconds (only for the mechanical throttle car ) |
|
22 |
Cutoil*123456 |
Cut off the fuel remotely |
|
23 |
Supplyoil*123456 |
Supply fuel remotely |
|
24 |
ADDPHONE*123456*A*13112345678 ADDPHONE*123456*B*13212345678 ADDPHONE*123456*C*13312345678 |
Add admin phone number |
|
25 |
DELETEPHONE*123456*A DELETEPHONE*123456*B DELETEPHONE*123456*C |
Delete admin phone number |
|
26 |
ALARMPHONE*123456 |
Send alarm to admin phone number |
|
27 |
ALARMCANCEL*123456 |
Only send alarm to platform not to phone |
|
28 |
openpulsealarm*123456 |
Send pulse alarm to admin phone number |
|
29 |
closepulsealarm*123456 |
Close the pulse alarm |
|
30 |
openpulse*123456 |
Open limp mode |
|
31 |
closepulse*123456 |
Close the limp mode |
|
32 |
Tcp |
TP121.201.110.106 P7000DD000019171223244F0000S0014R0000ON30OFF60VJun 12 2020A:CMNET,p450,s80,c15, 0.360V, 0.720V,12.43V,a0,G00,-59 dbm |
