Description
Specification:
Examination area: 100~1000mm
resolution ratio: 0.1%
Measuring accuracy:0.1%
Maximal error of measure :1mm
heat-resistant :-40~150
Diameter Φ18mm
Output signal :4~20mA,0~5V, RS485, RS232, CAN bus
Voltage supply :DC7~42V
Rated supply :0.1W

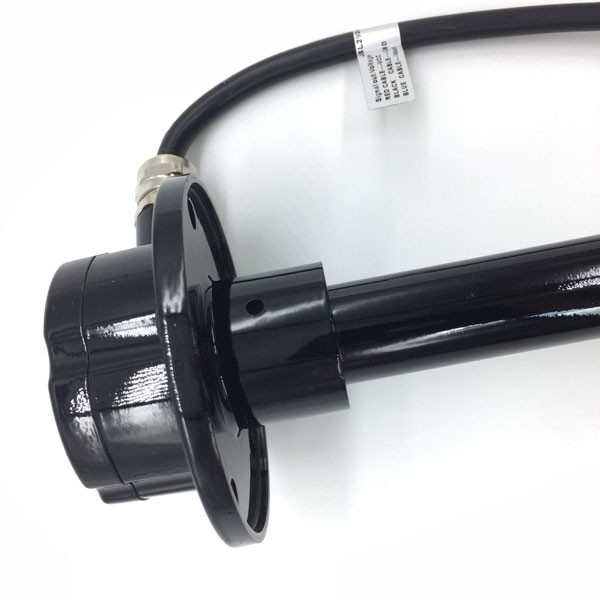

Fixed type :Screw installation M20X1.5 OR Flange mounting
Pressure range :-0.1MPa ~ 0.1 MPa
ambient temperature -40~85℃
Feature:
* Measuring accuracy:0.1%; * The Length can be cut; * Length can be customized made.

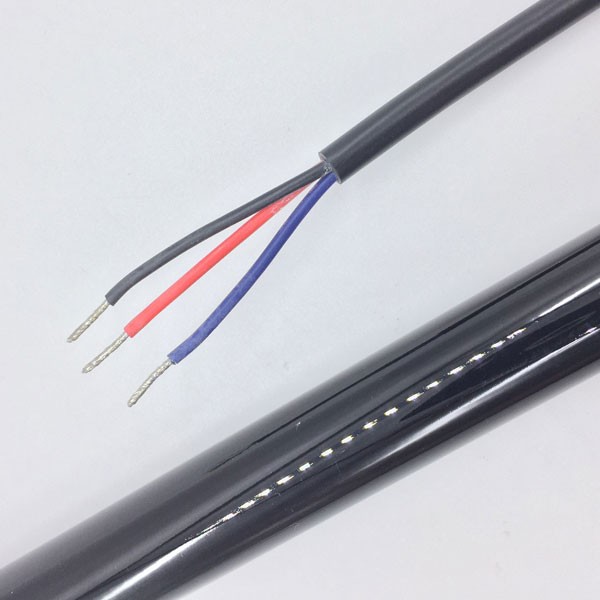

definition of the output line:
0~5V output [CLS2-700A]; 4~20 mA output [CLS2-700B];
RS232 output [CLS2-700C]; RS485output mode(CLS2-700D)
