Description

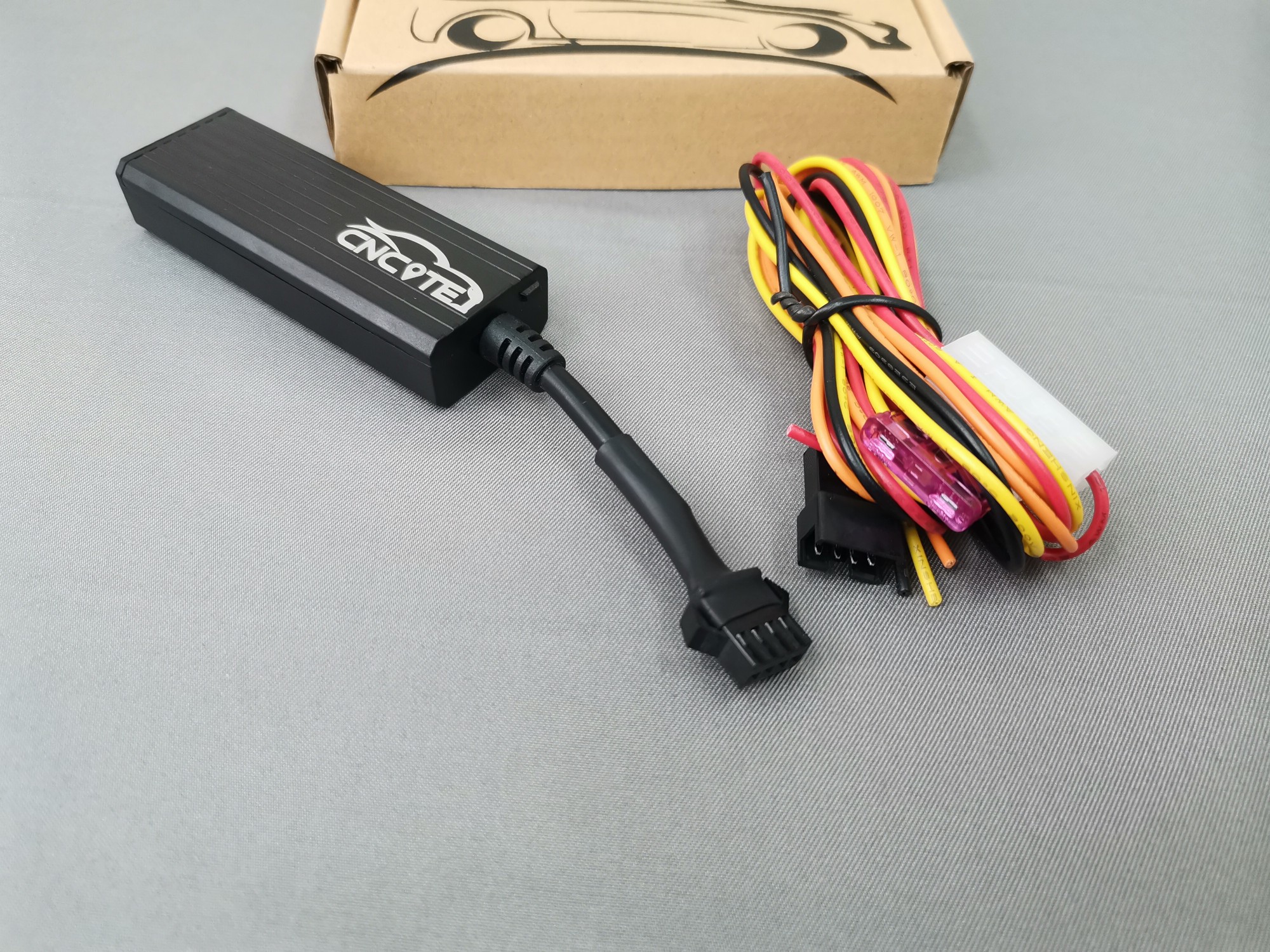

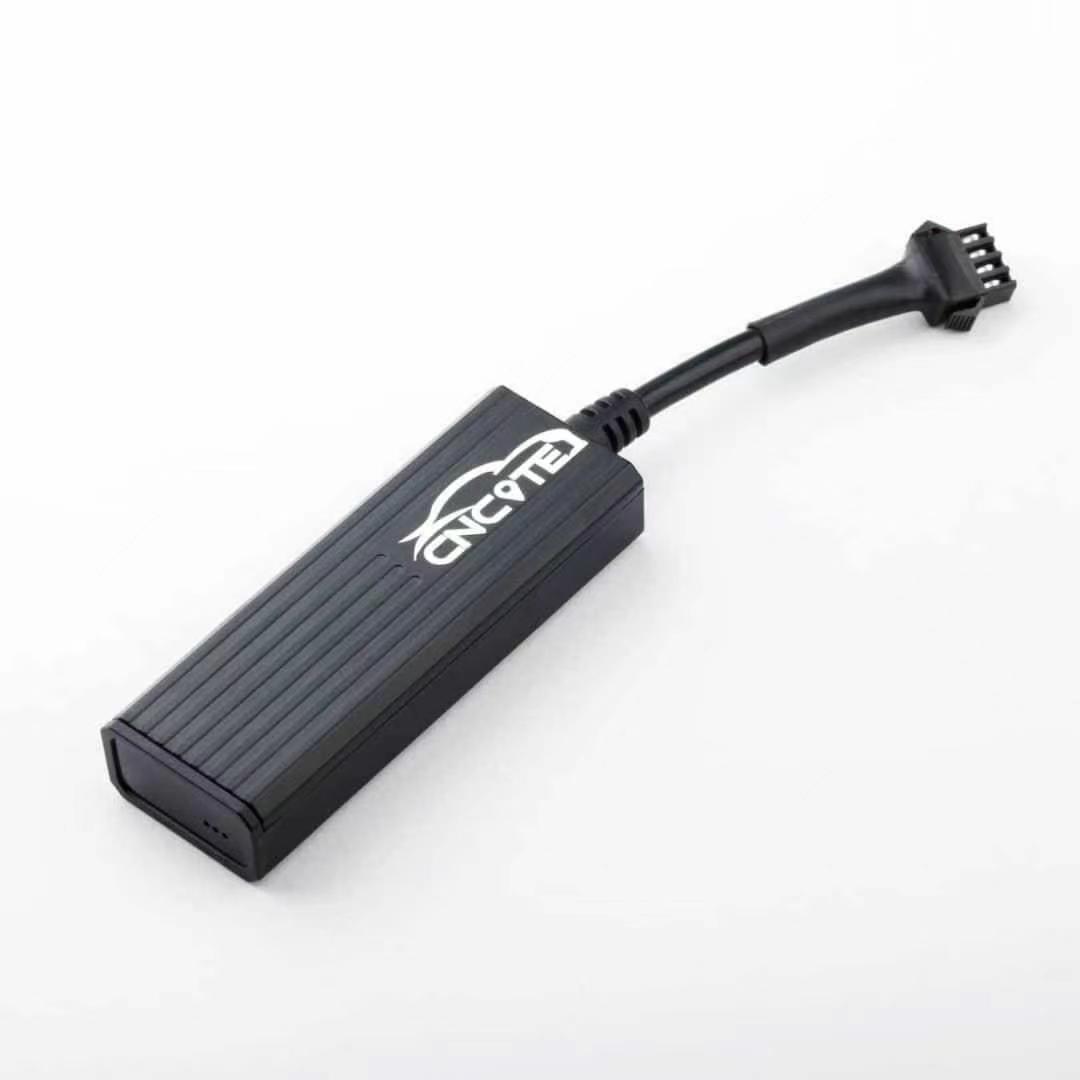

Hot Sell Vehicle GPS Tracker TK003
Lagos, Nairobi, Uganda, Zambia, Cameroon, Tanzania, Abidjan,Philippines, Madagascar，Ghana, Cango, Angola warehouse ready stocks. Hot sell model
Functions:
Real Time tracking & History tracking replay back.
ACC status reporting
Mileage reporting
Over speed alert
Main power off alert
Cut Engine / Resume engine reomtely. (need relay)
Technical parameter：
1. GSM：850/900/1800/1900 Quad band
2. GPRS: Class12, TCP/IP
3. Working Voltage：9-100V DC
4）.Working current：≈22mA (12vDC)
5. Working current：≈12mA (24vDC)
6. GPS locating time：Cold start≈38s（Open sky）
Warm start≈32s Hot start≈2s（Open sky）
7. GPS Precision：10m（2D RM）
8. Working temperature：-20℃～+70℃
9. Working humidity：20%～80%RH

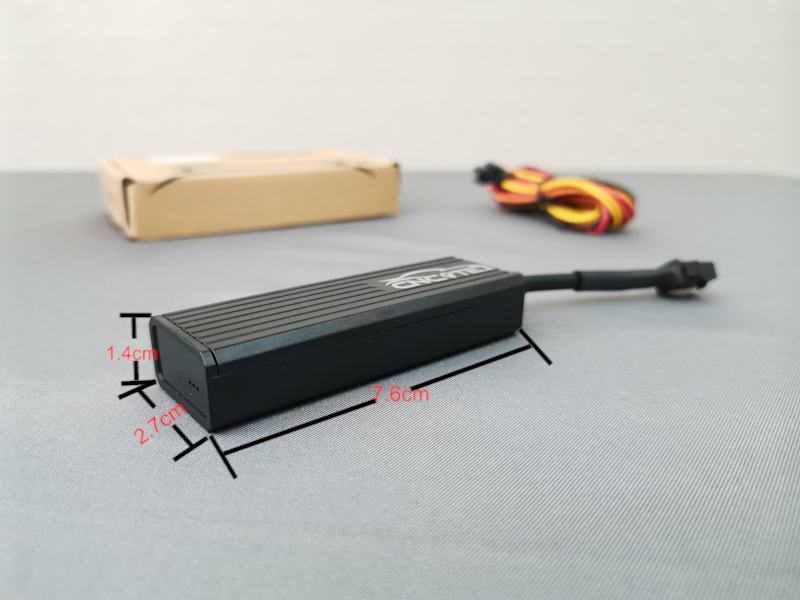

10. Measurement：76（L）×26（W）×19（H）mm
Device status indicators
Connect DC 9-100V power supply and the red LED will light continuously.
The red LED is the power signal，
it is always on when the external DC is connected.
The blue LED is the GSM signal indicator.
It is always on when there is no GSM;
it flashes when GSM is normal;
it flashes quickly when transmitting data.
The yellow LED is the GPS signal indicator:
it is always on when there is no positioning;
it flashes after positioning.
SMS Command List:
|
SMS Command list |
|||
|
NO. |
Item |
SMS Commands format |
Remarks |
|
1 |
Check Device Status |
STATUS# |
|
|
2 |
Check Device parameters |
PARAM# |
|
|
3 |
Check GPRS Parameters |
GPRSSET# |
|
|
4 |
Check Device Lat. And Log. |
WHERE# |
|
|
5 |
Set Server IP or Domain name |
1. Set Server Domain name： SERVER,1,domain name,port,0# 2. Set Server IP： SERVER,0,IP,Port,0# The last bit 0 stands for TCP |
|
|
6 |
Check Server parameters |
SERVER# |
|
|
7 |
Reset Device |
RESET# |
The terminal will restart after 1 minutes |
|
8 |
Add SOS Number |
SOS,A, Number 1,Number 2,Number 3# |
|
|
9 |
Del SOS Number |
SOS,D,No. 1,No. 2,No. 3# |
|
|
10 |
Check SOS Number |
SOS# |
|
|
11 |
Add Center number |
CENTER,A,Number# |
Only SMS NUMBER CAN SET CENTER NUMBER |
|
12 |
Del Center number |
CENTER,D# |
|
|
13 |
GPS DATA upload time interval |
TIMER,T1,T2# T1=0、5～18000seconds;
ACC ON time interval ACC OFF time interval Example: TIMER,30,300# |
|
|
14 |
Check time interval |
TIMER# |
|
|
15 |
Control Relay |
RELAY,A# 0 stands for on 1 stands for off Example: RELAY,0# |
|
|
16 |
Check Relay status |
RELAY# |
|
|
17 |
Open Vibration alert |
SENALM,A,M# A=ON M=0～2 alert methods 0 stands for only GPRS 1 stands for SMS+GPRS 2 GPRS+SMS+CALL Example:SENALM,ON,2# |
|
|
18 |
Close Vibration alert |
SENALM,OFF# |
|
|
19 |
Check Vibration alert status |
SENALM# |
|
|
20 |
Open power off alert |
POWERALM,A,M,T1,T2,# 0 stands for only GPRS 1 stands for SMS+GPRS 2 GPRS+SMS+CALL T1=2～60seconds detect power off time T2=1-3600seconds the minimum charge time Example:POWERALM,ON,2,30,300# |
|
|
21 |
Check power off alert status |
POWERALM# |
|
|
22 |
Check heartbeat data status |
HBT# |
|
|
23 |
Open Over speed alert |
SPEED,A,B,C,M# B=5～600seconds C=1～255km/h M=0～1,upload method, 0 only GPRS 1 SMS+GPRS； |
Example: SPEED,ON,10,120,1# |
|
24 |
Close Over speed alert |
SPEED,OFF# |
|
|
25 |
Check Over speed status |
SPEED# |
|
|
26 |
ACC alert on Platform only |
ACCALM,ON,0# |
|
|
27 |
ACC alert by SMS only |
ACCALM,ON,1# |
|
|
28 |
ACC alert by SMS and calling |
ACCALM,ON,2# |
|
|
29 |
Turn off ACC alert |
ACCALM,OFF# |
|
